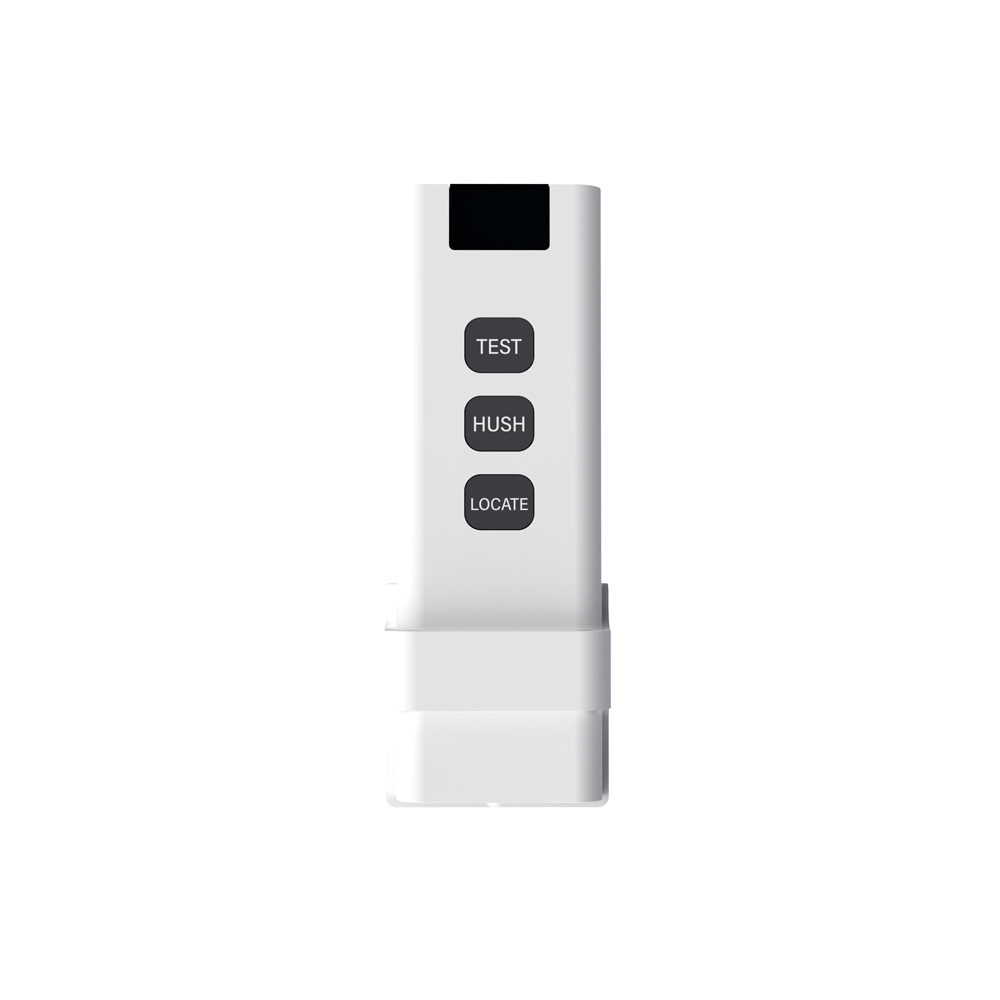

AJ-R1065 Interconnected Remote Controller

The AJ-R1065 is a portable wireless remote controller designed for AJ-76XSI series interconnected smoke alarms. It allows users to remotely perform test, silence, and locate operations, making daily maintenance and emergency handling faster and more convenient.

Key Features

• Wireless RF 433MHz communication

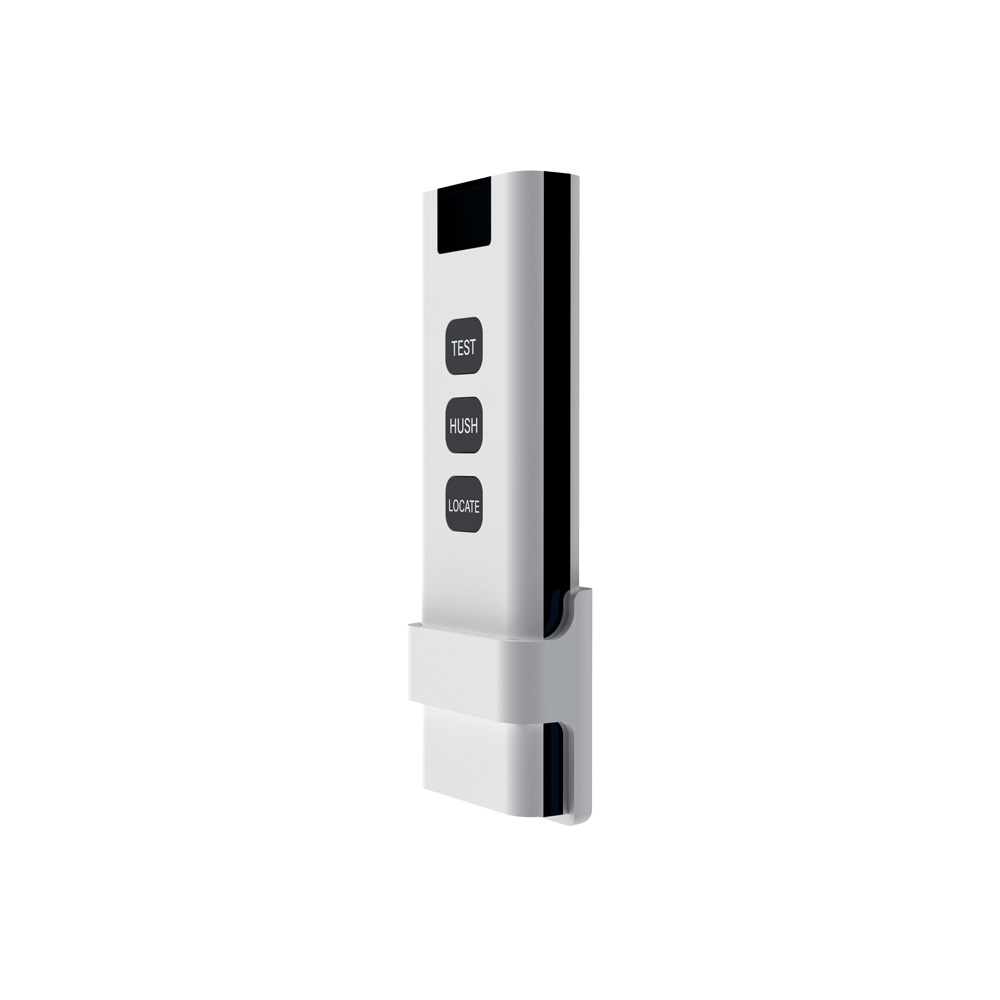

• Compact, portable, and wall-mountable design
• Powered by two replaceable AAA batteries

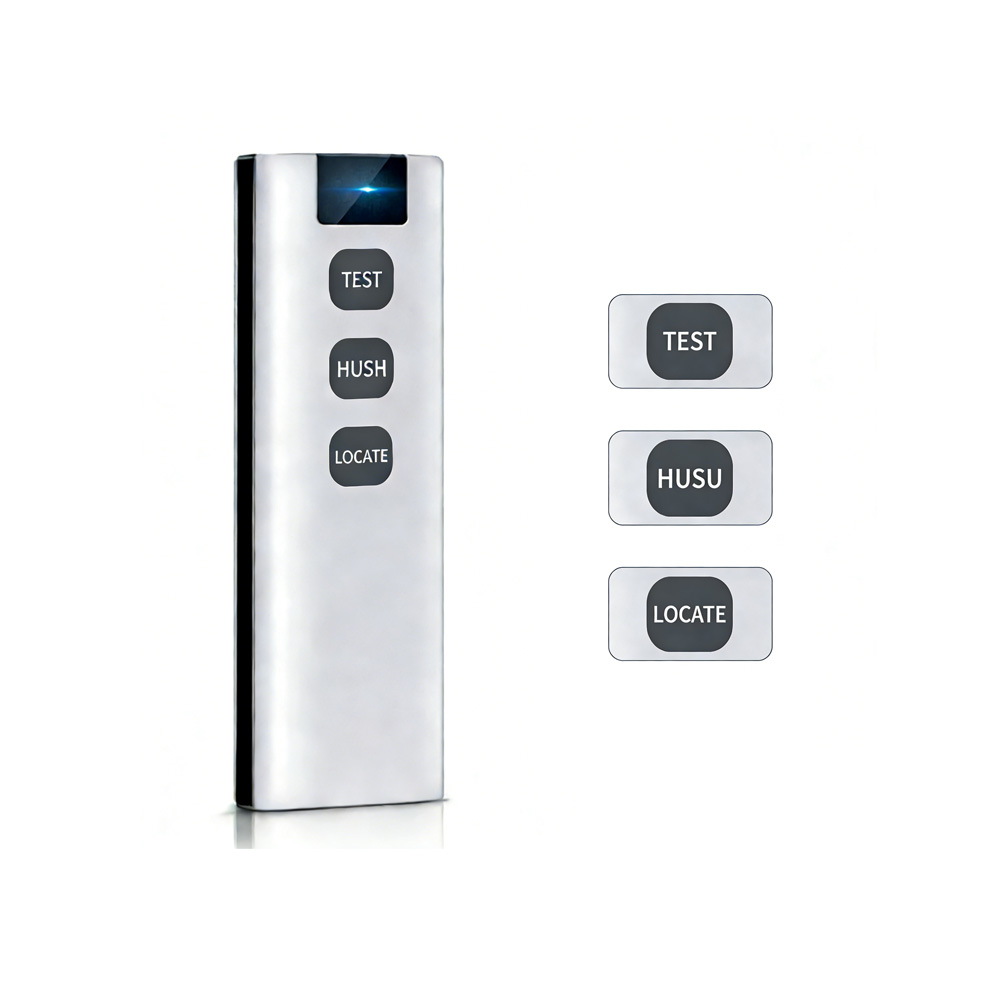

• One-button Test / Hush / Locate control
• Supports grouped device interconnection

Pairing Operation

1. Use Remote Controller as Main Device

• Keep all devices within 1 meter
• Press and hold the HUSH button until the green light flashes 3 times, then release
• Red light flashes for about 1 minute
• Other devices pair automatically (one beep + long green light)
• If already paired to another group, quick beeps + green flash prompt appears
• To confirm pairing, press and hold the device control button once
• Press the remote TEST button once to finish pairing

2. Add Remote or New Alarms to Existing Group

• Clear old pairing data first
• Select any device in the group as main device
• Press and hold control button until green light flashes 3 times
• Press and hold remote TEST button until red light flashes twice
• New devices pair automatically
• Press main device control button once to complete pairing

How to Clear Paired Data

• Smoke Alarm: Hold control/test button until green light flashes 4 times
• Remote Controller: Hold TEST button until red light flashes 4 times

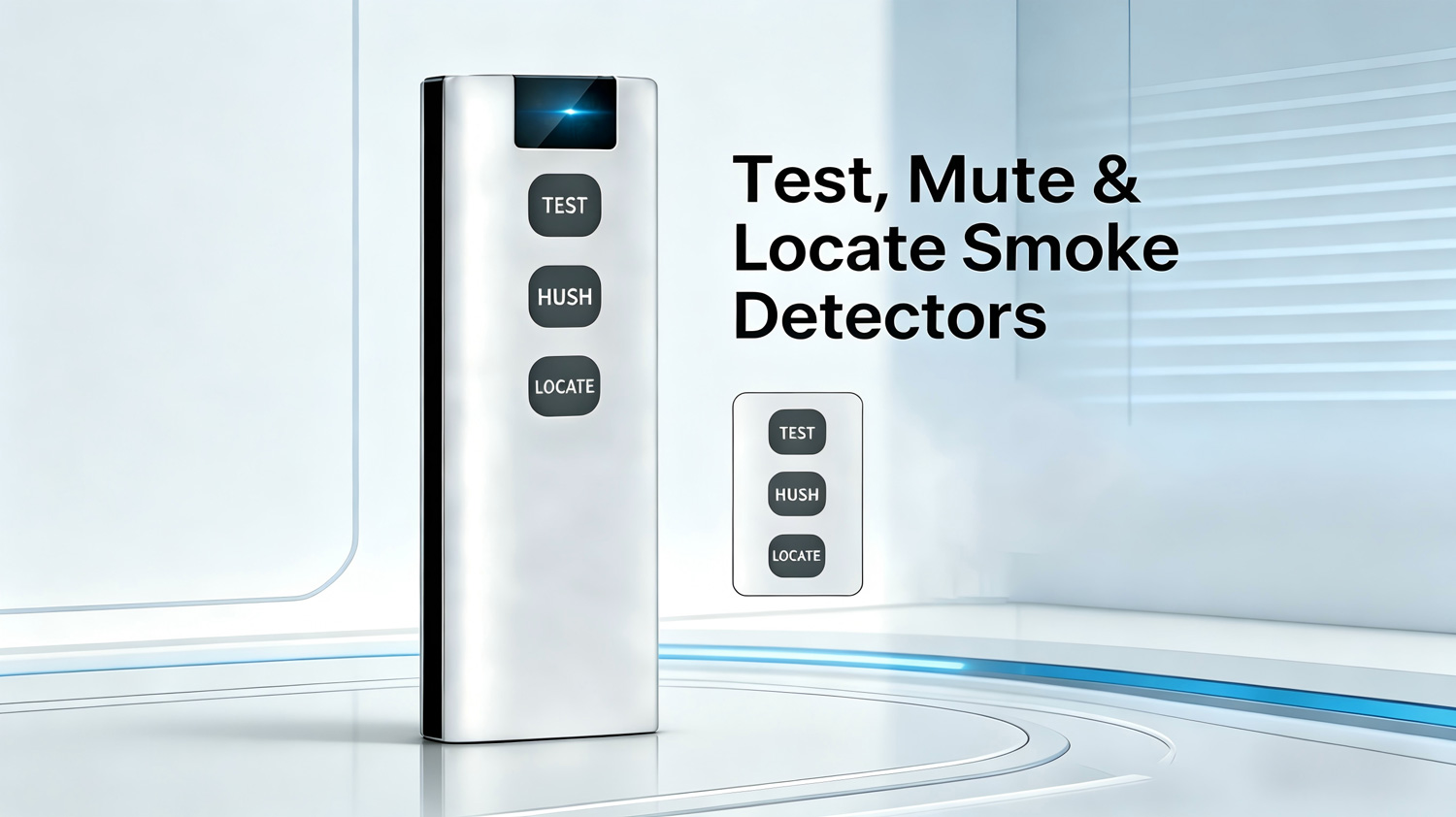

Test / Hush / Locate Functions

• Test: Within 3 meters, point remote at alarm and press TEST
• Alarm sounds for 10–15 seconds, then stops automatically
• Locate: Identifies the first triggered alarm
• Only the first alarm keeps beeping; others are silenced
• Hush: Silences all alarms immediately
• First alarm retains memory (3 beeps/minute) until manually cleared

Technical Specifications

Product Manual:AJ-R1065 Interconnected Remote Controller Product Manual
